EAS-24-NODE-4D

Input and distribution module with DSP for EAS-24 amplifiers

One group of four 24-volt bus outputs for mono or stereo setups, one local stereo unbalanced output (RCA). Each output powers up to three EAS-24-AMP-30Ds. The module requires an external 24-volt power supply.

Distribution module with four outputs divided into two groups. Each group has volume control of the line audio input signals. As many as eight EAS-24-NODE-4Ds can be looped/connected on distances of several hundred meters.

  • It has two audio inputs: EAS and 100V input. The EAS input provides a balanced audio signal, and can also be used for connecing other EAS products. The 100V input is used to connect the node to an existing 100V system.
  • The EAS-24-NODE-4D contains an integrated audio DSP with 10-band parametric EQ, variable high/low-pass filter, dynamic processor with noise gate and loudness.
  • On customer request, Laud Media can modify the amplifier characterics in order to adapt to and significantly improve the performance of the selected speaker.

Technical Specifications

Operating voltage:
24 (18 - 26) VDC
Idle Power Consumtion:
2.0 W
Inputs:
  • EAS-bus (RJ45)
  • 100V Audio (Terminal connector, 5mm pitch)
Outputs:
  • EAS-bus (RJ45)
  • EAS-24-bus (RJ45) x4
Frequency Response:
20 - 22 000 Hz
Distortion/Noise:
<1 THD+N
Dimensions (WxHxD):
142x133x36 mm
Weight:
214 g

Environmental

Operating Temperature:
0° - 50° C (32° - 122° F)
Operating Humidity:
10% - 85%, Non-condensing
Storage Temperature:
-40° - 70° C (-40° - 158° F)
Storage Humidity:
10% - 85%, Non-condensing

Regulatory Approvals

EMC:
  • EN 55032:2012
  • EN 55103-2:2009
  • IEC 60533:2015
  • IEC/EN 60945:2002 + Cor1:2008 /EMC requirements only
Safety:

IEC/EN 60065: 2014

Materials/RoHS:

EN 50581:2012

Warranty

Limited Warranty 1 Year Parts and Labor

Manufactured by

Laud Media AS, Løkka 7, N-3271 Larvik, Norway

Data is subject to change without notice.

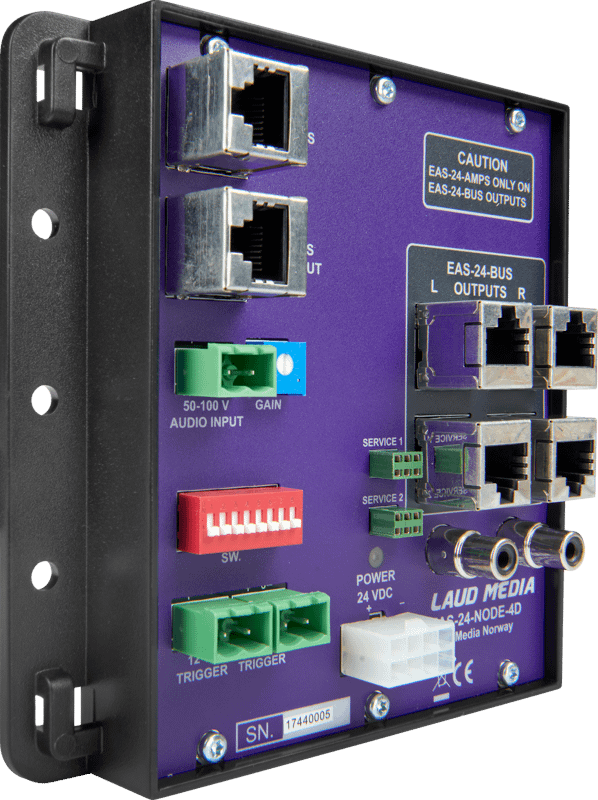

Reference

  1. EAS-24-BUS output left
  2. EAS-24-BUS output right
  3. RCA analog audio output
  4. Power LED
  5. Power supply connection
    LM-PS 24VDC
  6. Service MCU
  7. 0 V trigger input
    Plug: Phoenix MSTB 2,5/ 2-ST pitch: 5 mm
  8. 12 V trigger input
    Plug: Phoenix MSTB 2,5/ 2-ST pitch: 5 mm
  9. DIP SW 1-8
    Default EAS-BUS input SW 1-8 off
    50-100 V input SW 1 on
  10. Input 50-100 V gain
  11. Input 50-100 V speaker line signal
    Plug: Phoenix MSTB 2,5/ 2-ST pitch: 5 mm
  12. EAS-bus loop input
  13. EAS-BUS input
