EAS-RJ45-SPLIT-13

EAS-bus splitter

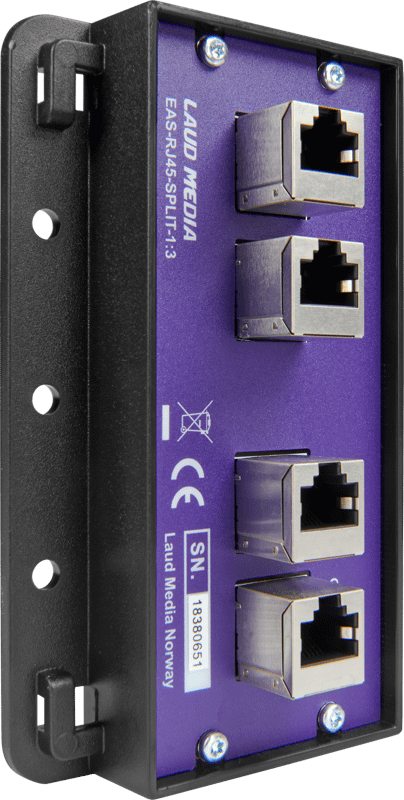

A simple passive EAS-bus splitter with one input and three outputs.

A simple passive EAS-bus splitter with one input and three outputs.

Technical Specifications

Inputs:
  • EAS-bus (RJ45)
Outputs:
  • 3x EAS-bus (RJ45)
Frequency Response:
20 - 22 000 Hz
Dimensions (WxHxD):
89x133x32 mm
Weight:
109 g

Environmental

Operating Temperature:
0° - 50° C (32° - 122° F)
Operating Humidity:
10% - 85%, Non-condensing
Storage Temperature:
-40° - 70° C (-40° - 158° F)
Storage Humidity:
10% - 85%, Non-condensing

Regulatory Approvals

EMC:
  • EN 55032:2012
  • EN 55103-2:2009
  • IEC 60533:2015
  • IEC/EN 60945:2002 + Cor1:2008 /EMC requirements only
Safety:

IEC/EN 60065: 2014

Materials/RoHS:

EN 50581:2012

Warranty

Limited Warranty 1 Year Parts and Labor

Manufactured by

Laud Media AS, Løkka 7, N-3271 Larvik, Norway

Data is subject to change without notice.

Quick Start Guide

This modules is just what i looks like – a passive split. One bus goes it, three identical buses comes out.

Reference

  1. EAS-BUS input
  2. EAS-BUS output 1-3
