EAS-RX-11
Output module for unbalanced analog audio
Analog balanced to unbalanced audio converter. The module receives power from the EAS-bus.
The EAS-RX-11 is a high fidelity audio converter that converts balanced to unbalanced audio. The audio input is the EAS-bus which also delivers power to the unit.
Technical Specifications
EAS-RX-11
Operating voltage:
15 (12 - 16) VDC
Idle Power Consumtion:
0.4 W
Inputs:
- EAS-bus (RJ45)
Outputs:
- Analog Audio (RCA)
Frequency Response:
20 - 22 000 Hz
Dimensions (WxHxD):
89x133x34 mm
Weight:
107 g
Environmental
Operating Temperature:
0° - 50° C (32° - 122° F)
Operating Humidity:
10% - 85%, Non-condensing
Storage Temperature:
-40° - 70° C (-40° - 158° F)
Storage Humidity:
10% - 85%, Non-condensing
Regulatory Approvals
EMC:
- EN 55032:2012
- EN 55103-2:2009
- IEC 60533:2015
- IEC/EN 60945:2002 + Cor1:2008 /EMC requirements only
Safety:
IEC/EN 60065: 2014
Materials/RoHS:
EN 50581:2012
Warranty
Limited Warranty 1 Year Parts and Labor
Manufactured by
Laud Media AS, Løkka 7, N-3271 Larvik, Norway
Data is subject to change without notice.
Quick Start Guide
The EAS-RX-11 is a very simple module with one job: to output stereo unbalanced analog sound over RCA connectors. You would typically use it when connecting external sound equipment like recording systems or active speakers. In applications where a balanced signal is preferred, you might want to consider using the EAX-FX-RXLR instead.
Simply connect the EAS-bus and the module will output audio through the two RCA connectors. The module is strictly bus-powered, so confirm there’s a 15-volt power supply at some point along the bus by checking the LED indicator.
Reference

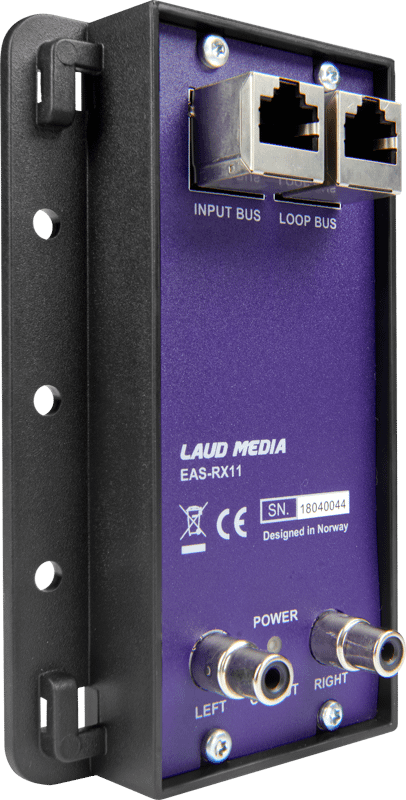

EAS-RX-11
- RCA analog audio out
- RJ45 input EAS BUS
- RJ45 EAS BUS loop
- LED power
