EAS-AMP-500D

500W stereo amplifier with DSP and delay

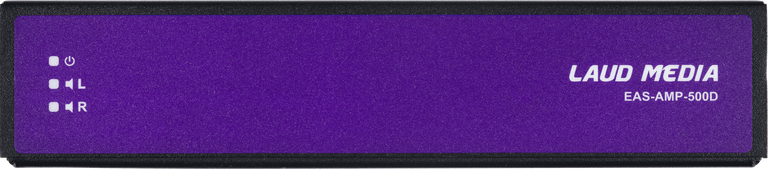

500 watts stereo or mono Hypex nCore powered amplifier with DSP and delay. It fits in a 1U half-rack space and can be mounted in 19″ racks alone or two side-by-side, or even directly on flat surfaces using our BR series of brackets.

500 watts stereo or mono Hypex nCore powered amplifier with DSP and delay. It fits in a 1U half-rack space and can be mounted in 19″ racks alone or two side-by-side, or even directly on flat surfaces using our BR series of brackets.

The display gives you valuable information and a set of on-site operations done directly on the unit, including typical service/installation features like initiating Speaker Detect and enabling the test signal.

Depending on the situation it can be used to operate in:

  • Stereo, 2x 250 watts @ 4 Ω
  • 2x mono, 2x 250 watts @ 4 Ω
  • Mono, 1x 500 watts @ 8 Ω

Technical Specifications

EAS-AMP-500D

Operating voltage:
15 (12 - 16) VDC
Idle Power Consumtion:
0.9 W
Inputs:

EAS-bus (RJ45)

Outputs:
  • EAS-bus (RJ45)
  • Stereo analog audio (RCA)
  • Speaker connector (Phoenix MSTBVA 2,5/2-G)
Frequency Response:
20 - 22 000 Hz
Distortion/Noise:
<1 THD+N
Output Impedance:
225 Ω
Continous Output Power:
2x25W @ 4 Ω or 1x100W @ 8 Ω
Maximum Output Power:
2x125W @ 4Ω or 1x250W @ 8 Ω (<2 THD+N)
Dimensions (WxHxD):
200x44x181 mm
Weight:
1,385 g

Environmental

Operating Temperature:
0° - 50° C (32° - 122° F)
Operating Humidity:
10% - 85%, Non-condensing
Storage Temperature:
-40° - 70° C (-40° - 158° F)
Storage Humidity:
10% - 85%, Non-condensing

Regulatory Approvals

EMC:
  • EN 55032:2012
  • EN 55103-2:2009
  • IEC 60533:2015
  • IEC/EN 60945:2002 + Cor1:2008 /EMC requirements only
Safety:

IEC/EN 60065: 2014

Materials/RoHS:

EN 50581:2012

Warranty

Limited Warranty 1 Year Parts and Labor

Manufactured by

Laud Media AS, Løkka 7, N-3271 Larvik, Norway

Data is subject to change without notice.

Contents

All EAS modules

Reference

EAS-AMP-500D

  1. Right channel LED
    Solid green – active with signal
    Red blinks – clip
    Solid yellow – Amplifier warm
    Solid red – Amplifier too warm. Over temperature protection
    Off – No signal
  2. Left channel LED
    Solid green – active with signal
    Red blinks – clip
    Solid yellow – Amplifier warm
    Solid red – Amplifier too warm, over-temperature protection
    Off – No signal
  3. Power LED
    Solid green – on
    Solid blue – standby
    Green flashing – Programming in progress
    Red flashing – 230V power missing
    Off – Amplifier not powered
  4. Display
  5. Up
  6. Enter
  7. Down
  8. IEC C14 230 VAC power input
  9. Service MCU
  10. Service DSP
  11. DIP SW 1-2
    SW 2 off: default EAS-BUS input
    SW 2 on: EAS input = left channel input EAS loop = right channel input
    SW 1 on: internal power
    SW 1 off: external power
  12. EAS-BUS input
  13. Speaker output left 1
    Plug: Phoenix MSTB 2,5/ 2-ST pitch: 5 mm
    Min 4 Ω
  14. Speaker output left 2
    Plug: Phoenix MSTB 2,5/ 2-ST pitch: 5 mm
    Min 4 Ω
  15. Bridged speaker output
    Min 4 Ω
  16. Speaker output right 1
    Plug: Phoenix MSTB 2,5/ 2-ST pitch: 5 mm
    Min 4 Ω
  17. Speaker output right 2
    Plug: Phoenix MSTB 2,5/ 2-ST pitch: 5 mm
    Min 4 Ω
  18. EAS-BUS loop output
  19. RCA analog audio out left
  20. RCA analog audio out right
