EAS-CP-M1

EAS control panel with microphone input

Single zone volume control, mute and source selector for the EAS-SYSCON-12. It also mixes and sends the following input signals to the EAS-bus: 1x microphone (XLR) and 2x unbalanced stereo analog audio (RCA). The module receives power from the EAS-bus.

The EAS-CP-M1 is an EAS control panel and audio mixer. It lets you mix the audio input from the microphone, screw terminal or the RCA input together with the EAS audio input.

  • To be used in systems built around an EAS-SYSCON-12
  • The panel lets you also control the volume of all inputs independently.

Technical Specifications

EAS-CP-M1

Operating voltage:
15 (12 - 16) VDC
Idle Power Consumtion:
2.1 W
Inputs:
  • Microphone (XLR)
  • Analog Audio (RCA)
  • EAS-bus (RJ45)
  • Analog Audio (screw terminal)
Outputs:
  • EAS-bus (RJ45)
Frequency Response:
20 - 22 000 Hz
Dimensions (WxHxD):
214x135x52 mm
Weight:
698 g

Environmental

Operating Temperature:
0° - 50° C (32° - 122° F)
Operating Humidity:
10% - 85%, Non-condensing
Storage Temperature:
-40° - 70° C (-40° - 158° F)
Storage Humidity:
10% - 85%, Non-condensing

Regulatory Approvals

EMC:
  • EN 55032:2012
  • EN 55103-2:2009
  • IEC 60533:2015
  • IEC/EN 60945:2002 + Cor1:2008 /EMC requirements only
Safety:

IEC/EN 60065: 2014

Materials/RoHS:

EN 50581:2012

Warranty

Limited Warranty 1 Year Parts and Labor

Manufactured by

Laud Media AS, Løkka 7, N-3271 Larvik, Norway

Data is subject to change without notice.

Reference

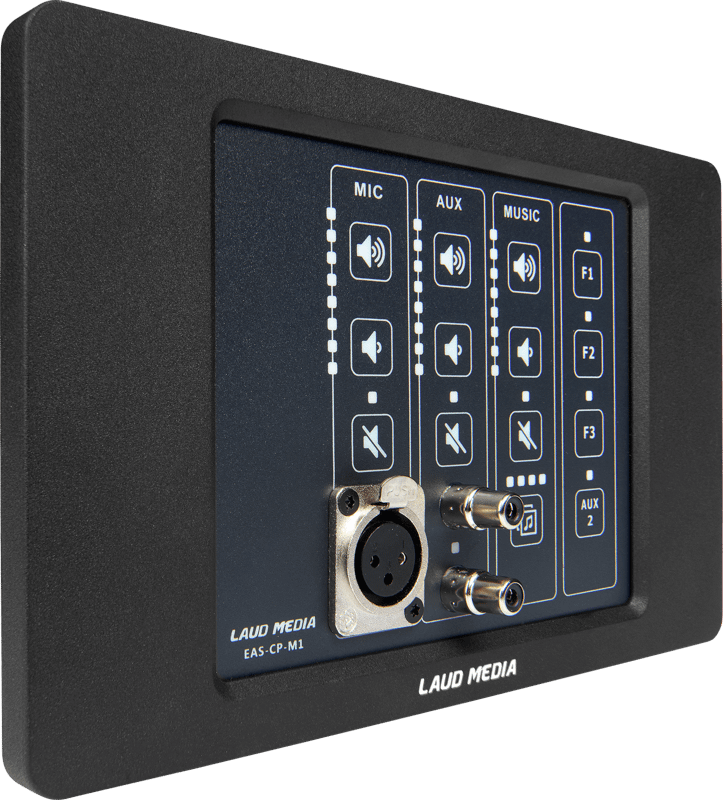

EAS-CP-M1

  1. Mic. section
  2. Aux. section
  3. Music section
  4. Funktion section
  5. LED Funktion
  6. Funktion button
  7. LED Aux 2
  8. Aux 2 button
  9. Audio sourse input select button
  10. LED audio sourse input chanal
  11. RCA Aux input section
  12. LED RCA input
  13. XLR mic input
  14. Mute button
  15. LED mute
  16. Volume down
  17. Volume up
  18. LED volume
