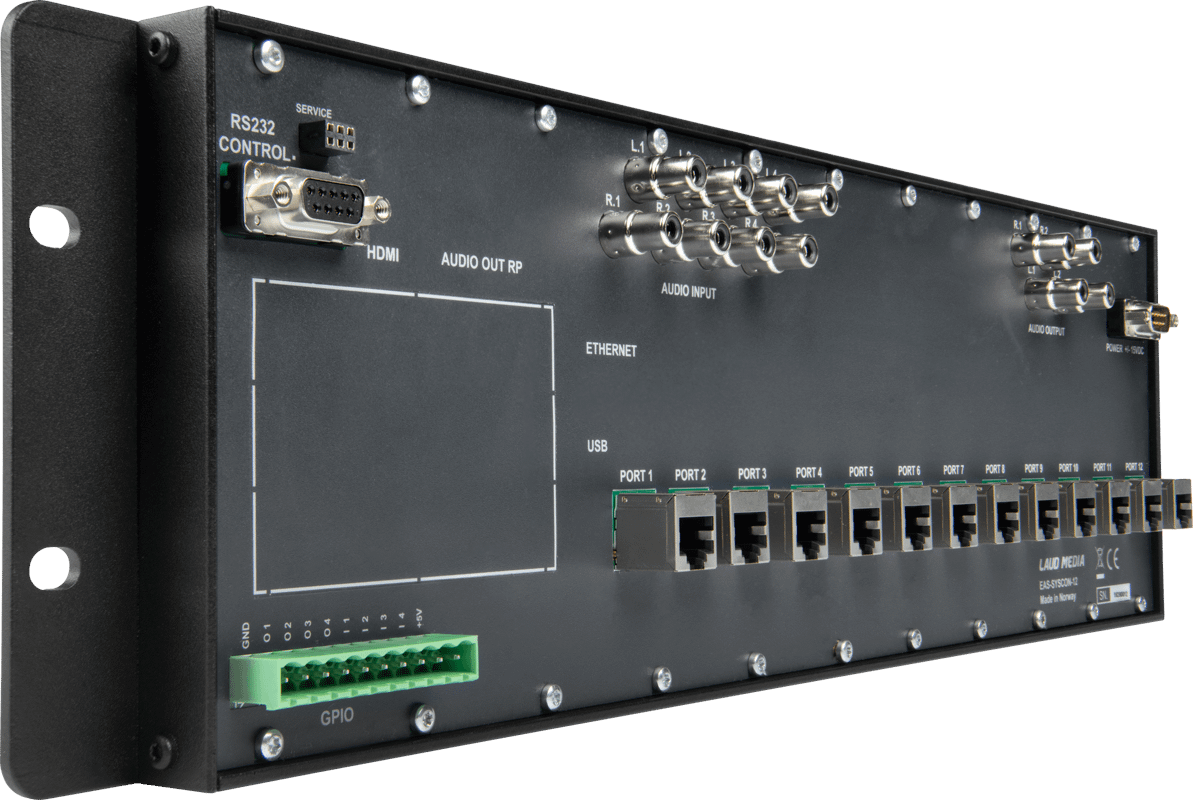

EAS-SYSCON-12

EAS system controller for multi zone audio configurations

Matrix for twelve EAS-bus ports, four local stereo unbalanced inputs (RCA) and two local unbalanced outputs (RCA). Supports instant switching between presets using CP/FX series control panels. The module requires external power.

The EAS-SYSCON-12 is the top level of larger EAS systems. It can be remotely controlled using a control panel, such as the EAS-CP-M1. The main purpose of the SYSCON-12 is to be able to create different audio zones and control the audio source and volume independently.

Technical Specifications

Operating voltage:
15 (12 - 16) VDC
Idle Power Consumtion:
17.5 W
Inputs:
  • 4x Stereo Analog Audio (RCA)
  • 10x switchable EAS input/output (RJ45)
Outputs:
  • 2x Stereo Analog Audio (RCA)
  • 2x EAS-bus (RJ45)
  • 10x switchable EAS input/output (RJ45)
Frequency Response:
20 - 22 000 Hz
Dimensions (WxHxD):
482x133x36 mm
Weight:
1,305 g

Environmental

Operating Temperature:
0° - 50° C (32° - 122° F)
Operating Humidity:
10% - 85%, Non-condensing
Storage Temperature:
-40° - 70° C (-40° - 158° F)
Storage Humidity:
10% - 85%, Non-condensing

Regulatory Approvals

EMC:
  • EN 55032:2012
  • EN 55103-2:2009
  • IEC 60533:2015
  • IEC/EN 60945:2002 + Cor1:2008 /EMC requirements only
Safety:

IEC/EN 60065: 2014

Materials/RoHS:

EN 50581:2012

Warranty

Limited Warranty 1 Year Parts and Labor

Manufactured by

Laud Media AS, Løkka 7, N-3271 Larvik, Norway

Data is subject to change without notice.

Reference

  1. D-sub 9, RS-232 control interface
  2. Service MCU
  3. RCA Analog audio input 1-4
  4. RCA Analog audio out
  5. Power supply connection
    LM-PS +/- 15VDC
  6. RJ45 EAS port
    Port 1-12 EAS outputs or/and port 3-12 EAS inputs
  7. GPIO trigger input and outpu
    Input trigger: ground + input nr.
    Output trigger +5V
  8. LED power
