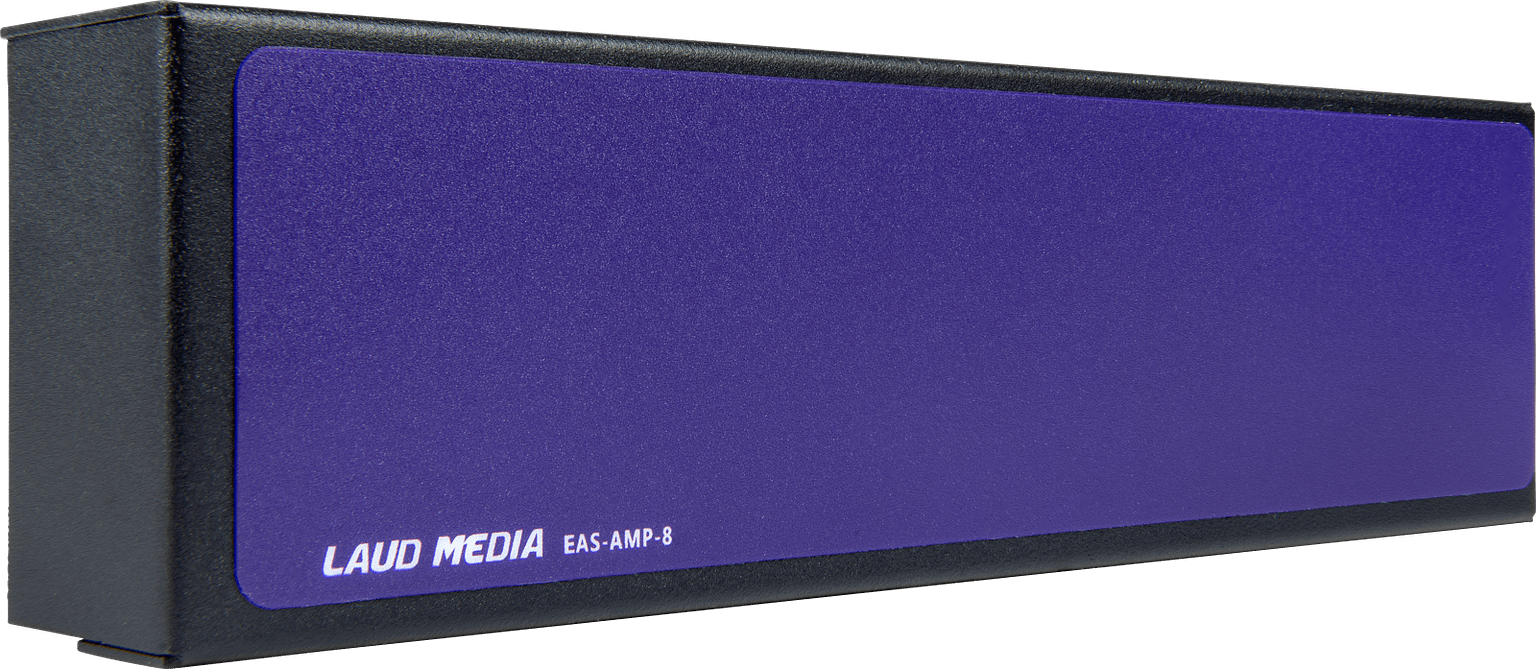

EAS-AMP-8-S

Remotely controlled EAS distribution amplifier with eight TRS outputs

Demo module for analog sound products that routes the incoming EAS-signal to one of eight selectable 3,5 mm TRS outputs. Selection, volume control, and muting is done on a touch panel.

Technical Specifications

EAS-AMP-8-S

Operating voltage:
15 (12 - 16) VDC
Idle Power Consumtion:
0.7 W
Inputs:
  • EAS-bus (RJ45)
Outputs:
  • EAS-bus (RJ45)
  • 8x 3.5mm TRS
Frequency Response:
20 - 22 000 Hz
Dimensions (WxHxD):
56x210x31 mm
Weight:
280 g

Environmental

Operating Temperature:
0° - 50° C (32° - 122° F)
Operating Humidity:
10% - 85%, Non-condensing
Storage Temperature:
-40° - 70° C (-40° - 158° F)
Storage Humidity:
10% - 85%, Non-condensing

Regulatory Approvals

EMC:
  • EN 55032:2012
  • EN 55103-2:2009
  • IEC 60533:2015
  • IEC/EN 60945:2002 + Cor1:2008 /EMC requirements only
Safety:

IEC/EN 60065: 2014

Materials/RoHS:

EN 50581:2012

Warranty

Limited Warranty 1 Year Parts and Labor

Manufactured by

Laud Media AS, Løkka 7, N-3271 Larvik, Norway

Data is subject to change without notice.

Contents

All EAS modules

Reference

EAS-AMP-8-S

  1. EAS-BUS RJ45
  2. RJ11 Control bus
  3. Audio outputs, 3.5 mm TRS (minijack)
  4. Dip-switch
