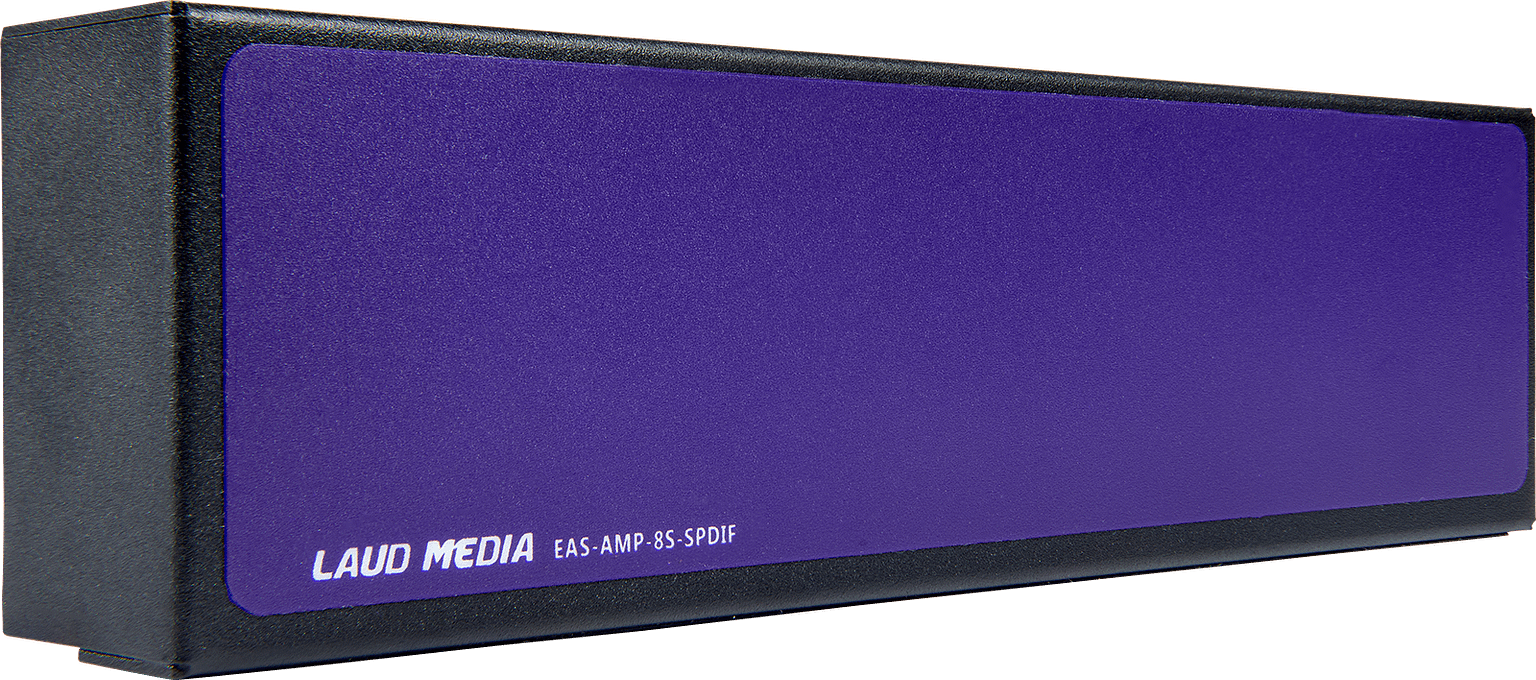

EAS-AMP-8S-SPDIF
Remotely controlled distribution amplifier with eight S/PDIF outputs
Demo module for sound products that converts and routes the incoming EAS-signal to either one of eight selectable S/PDIF outputs, or to all outputs simultaneously. Selection is done on a touch panel.
Technical Specifications
EAS-AMP-8S-SPDIF
Operating voltage:
15 (12 - 16) VDC
Inputs:
- EAS-bus (RJ45)
Outputs:
- EAS-bus (RJ45)
- 8x S/PDIF (TOSLINK)
Frequency Response:
20 - 22 000 Hz
Dimensions (WxHxD):
56x210x31 mm
Weight:
269 g
Environmental
Operating Temperature:
0° - 50° C (32° - 122° F)
Operating Humidity:
10% - 85%, Non-condensing
Storage Temperature:
-40° - 70° C (-40° - 158° F)
Storage Humidity:
10% - 85%, Non-condensing
Regulatory Approvals
EMC:
- EN 55032:2012
- EN 55103-2:2009
- IEC 60533:2015
- IEC/EN 60945:2002 + Cor1:2008 /EMC requirements only
Safety:
IEC/EN 60065: 2014
Materials/RoHS:
EN 50581:2012
Warranty
Limited Warranty 1 Year Parts and Labor
Manufactured by
Laud Media AS, Løkka 7, N-3271 Larvik, Norway
Data is subject to change without notice.
