EAS-CP-5

EAS control panel

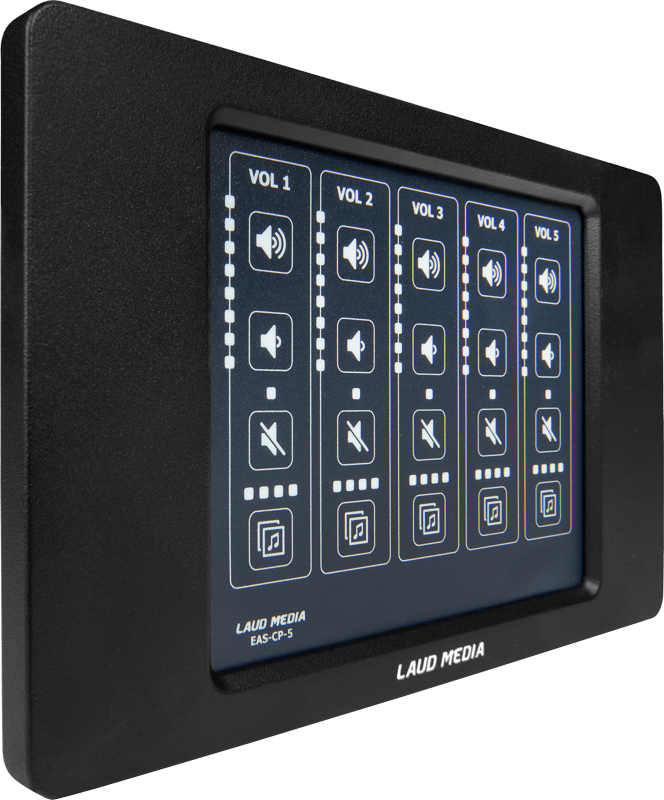

Control panel for volume control, mute and source selection for five EAS-SYSCON-12 zones. The module receives power from the SYSCON over the EAS-bus.

The EAS-CP-5 is a control panel that communicates with the EAS-SYSCON-12. It lets you independently control the volume and source on up to five zones on the EAS-SYSCON-12.

Technical Specifications

EAS-CP-5

Operating voltage:
15 (12 - 16) VDC
Idle Power Consumtion:
2.0 W
Inputs:
  • EAS-bus (RJ45)
Outputs:
  • EAS-bus (RJ45)
Frequency Response:
20 - 22 000 Hz
Dimensions (WxHxD):
214x135x38 mm
Weight:
641 g

Environmental

Operating Temperature:
0° - 50° C (32° - 122° F)
Operating Humidity:
10% - 85%, Non-condensing
Storage Temperature:
-40° - 70° C (-40° - 158° F)
Storage Humidity:
10% - 85%, Non-condensing

Regulatory Approvals

EMC:
  • EN 55032:2012
  • EN 55103-2:2009
  • IEC 60533:2015
  • IEC/EN 60945:2002 + Cor1:2008 /EMC requirements only
Safety:

IEC/EN 60065: 2014

Materials/RoHS:

EN 50581:2012

Warranty

Limited Warranty 1 Year Parts and Labor

Manufactured by

Laud Media AS, Løkka 7, N-3271 Larvik, Norway

Data is subject to change without notice.

Contents

All EAS modules

Reference

EAS-CP-5

  1. Volume and input section
  2. Volume and input section
  3. Volume and input section
  4. Volume and input section
  5. Volume and input section
  6. LED volume
  7. Volume up
  8. Volume down
  9. LED mute
  10. Mute button
  11. LED audio sourse input chanal
  12. Audio sourse input select button
