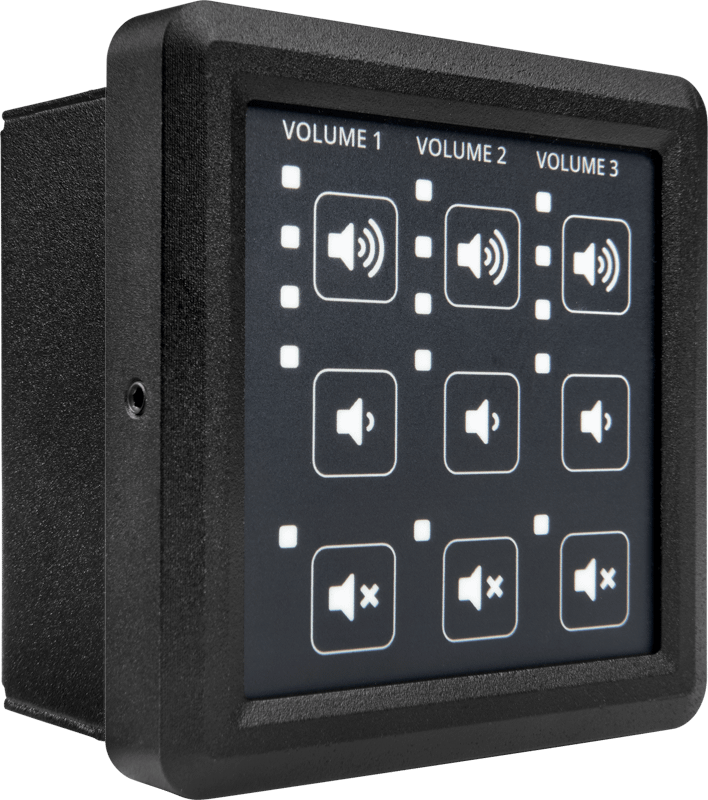

EAS-FX-V3

Volume panel for standard electrical junction boxes

This module serves as a volume controller for up to three FX enabled units or groups of units. It fits inside a standard in-wall electrical junction box, but can also be used on-wall with the included metal casing.

Technical Specifications

EAS-FX-V3

Operating voltage:
15 (12 - 16) VDC
Idle Power Consumtion:
0.6 W
Outputs:

EAS-bus (RJ45)

Frequency Response:
20 - 22 000 Hz
Distortion/Noise:
<3 THD+N
Dimensions (WxHxD):
88x88x47 mm
Weight:
137 g

Environmental

Operating Temperature:
0° - 50° C (32° - 122° F)
Operating Humidity:
10% - 85%, Non-condensing
Storage Temperature:
-40° - 70° C (-40° - 158° F)
Storage Humidity:
10% - 85%, Non-condensing

Regulatory Approvals

EMC:
  • EN 55032:2012
  • EN 55103-2:2009
  • IEC 60533:2015
  • IEC/EN 60945:2002 + Cor1:2008 /EMC requirements only
Safety:

IEC/EN 60065: 2014

Materials/RoHS:

EN 50581:2012

Warranty

Limited Warranty 1 Year Parts and Labor

Manufactured by

Laud Media AS, Løkka 7, N-3271 Larvik, Norway

Data is subject to change without notice.

Contents

All EAS modules

Reference

EAS-FX-V3

  1. Rj45
  2. Cat6 Terminal Block
